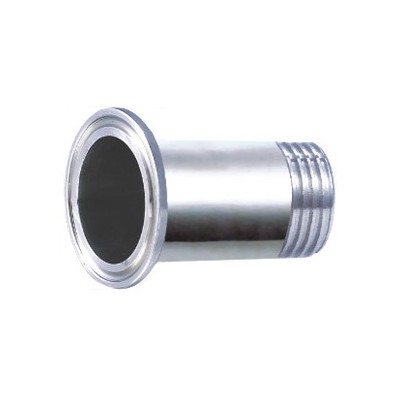

| 螺母式软管接头 | |||||
| Size | L1 | D | Dn | G | |
| DN25 | 77.0 | 28.0 | 24.0 | RD52×1/6 | |
| DN32 | 82.0 | 34.0 | 30.0 | RD58×1/6 | |
| DN40 | 87.0 | 40.0 | 35.0 | RD65×1/6 | |
| DN50 | 92.0 | 52.0 | 47.0 | RD78×1/6 | |
| DN65 | 102.0 | 70.0 | 64.0 | RRD95×1/6 | |
| DN80 | 110.0 | 85.0 | 79.0 | RD110×1/4 | |
| DN100 | 124.0 | 104.0 | 98.0 | RD130×1/4 | |
| Size | L | D | Dn | G |
| 25 | 72.0 | 25.4 | 20.0 | RD40×1/6 |
| 32 | 77.0 | 32.0 | 27.0 | RD48×1/6 |
| 38 | 82.0 | 38.1 | 33.0 | RD60×1/6 |
| 51 | 87.0 | 50.8 | 46.0 | RD70×1/6 |
| 63 | 98.0 | 63.5 | 57.5 | RRD85×1/6 |
| 76 | 103.0 | 76.2 | 70.0 | RD98×1/6 |
| 102 | 115.0 | 101.6 | 96.0 | RD132×1/6 |
