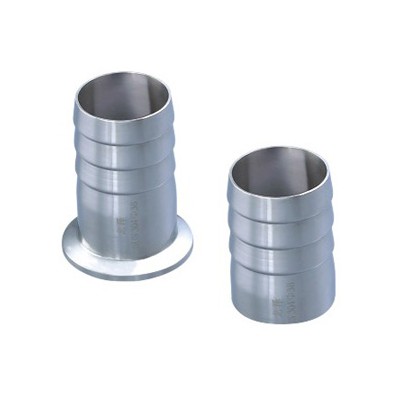

| 卡箍式皮管接头 | ||||
| Size | A | B | D | |
| 25 | 60.0 | 50.5 | 25.4 | |
| 32 | 65.0 | 50.5 | 31.8 | |
| 38 | 70.0 | 50.5 | 38.1 | |
| 51 | 75.0 | 64.0 | 50.8 | |
| 63 | 85.0 | 77.5 | 63.5 | |
| 76 | 90.0 | 91.0 | 76.3 | |
| 89 | 95.0 | 106.0 | 89.0 | |
| 102 | 100.0 | 119.0 | 101.6 |
|
|
|||||||||||||||||||||||||||
| 卡箍式皮管接头 | ||||
| Size | A | B | D | |
| 25 | 60.0 | 50.5 | 25.4 | |
| 32 | 65.0 | 50.5 | 31.8 | |
| 38 | 70.0 | 50.5 | 38.1 | |
| 51 | 75.0 | 64.0 | 50.8 | |
| 63 | 85.0 | 77.5 | 63.5 | |
| 76 | 90.0 | 91.0 | 76.3 | |
| 89 | 95.0 | 106.0 | 89.0 | |
| 102 | 100.0 | 119.0 | 101.6 |
|
